Antec High Current PRO 750 Watt

Indledning
Antec blev grundlagt i år 1986, og har siden da været en pioner indenfor hardwaremarkedet. Hovedkvarteret har beliggenhed i Fremont, California, men derudover har Antec også salgskontorer og lagerhaller i Holland, Tyskland, Kina og Taiwan.



På verdensplan bliver Antecs produkter solgt i mere end 40 lande, hvoraf Antec har dækket størstedelen af det potentielle marked ind. Selvom Antec er kendt for sit store udvalg af hardware, er det alligevel deres strømforsyninger og kabinetter, de er særlig kendt for blandt mainstream-folket og entusiaster.



Vi skal i dag give en af Antec´s strømforsyninger et kig. Der er her tale om deres High Current PRO på 750 watt, som byder på en modulær PSU med en 80 Guld certificering og masser af power på 12 volt linjen.





Hvad finder vi i kassen?

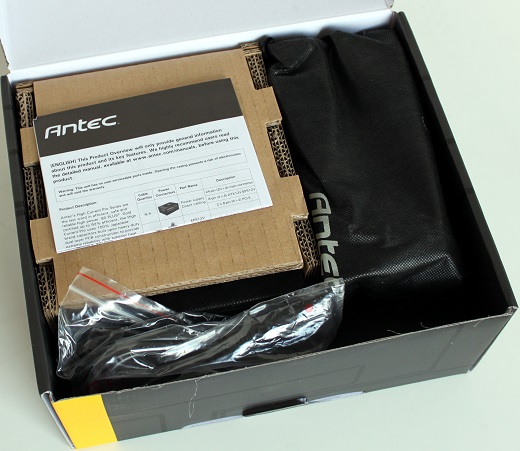

Lad os tage et kig på hvad vi finder i kassen. Her under ser vi et billede af kassen som det hele kommer i. Alt er pakket pænt ned så det ikke kan tage skade under transporten.

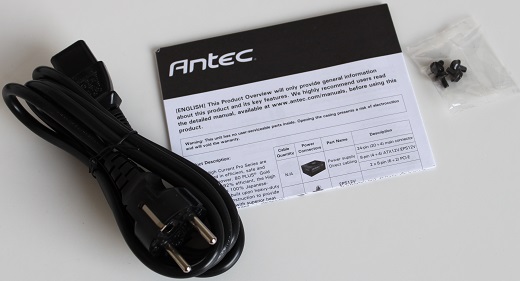

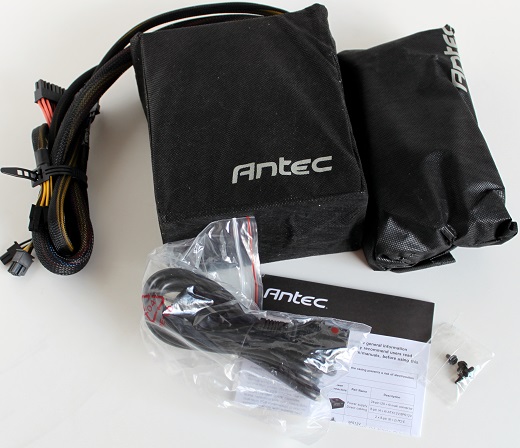

Her ser vi alt hvad man får med i kassen:

Antec High Current PRO 750 Watt Pose med modulære kabler Strømkabel Manual Pose med skruer







Specifikationer og features
Lad os tage et smut forbi Antec´s hjemmeside og finde lidt oplysninger på PSU´en:

+5V 0A 25.0A ±5% 40A 50 +12V1 0A 40.0A ±3% 40A 120 +12V2 0A 40.0A ±3% 40A 120 +12V3 0A 40.0A ±3% 40A 120 +12V4 0A 40.0A ±3% 40A 120 -12V 0A 0.5A ±10% 120 +5VSB 0A 3.0A ±5% 50 +3.3V 0A 25.0A ±5% 40A 50 +12V1-4 maximum combined output: 744W (62A) +3.3V and +5V combined maximum output: 150W Total Continuous Power: 750W Input Voltage 100 ~ 240V ± 10% Input frequency Range 50Hz ~ 60Hz Input Current (11A @ 115V, 5.5A @ 230V) Efficiency Up to 92%



Features:

• 750W Continuous Power - Guaranteed 750W of Continuous Power from Antec
• 80 PLUS™ Gold certified - Up to 92% efficient, to reduce your electricity bill
• Save Energy and Money - Reduce your electricity bill by up to 20%
• AQ5 - Antec Quality 5 year warranty and lifetime global 24/7 support
• 10-pin socket – Special 10-pin modular sockets for High Current flexibility
• 135 mm PWM DBB Silence - Whisper-quiet high-quality PWM double ball bearing fan with long lifetime
• Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
• High Current Rails - 4 High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
• 99% +12V - Output for maximum CPU & GPU support
• All Japanese Heavy-Duty Caps - All high-performance Japanese capacitors ensure tightest DC stability and regulation
• NVIDIA SLI®-Ready & AMD Crossfire certified - Tested & certified by NVIDIA® for SLI® & AMD for Crossfire systems
• CircuitShield™ - Full suite of industrial grade protections:
• Over Current Protection (OCP),
• Over Voltage Protection (OVP),
• Short Circuit Protection (SCP),
• Over Power Protection (OPP),
• Over Temperature Protection (OTP),
• Surge & Inrush Protection (SIP) &
• No Load Operation (NLO)
• ErP Lot 6 - Compliant to the toughest energy standard available
• Universal Input - Works on any 100V - 240V grid
• Active Power Factor Correction (PFC) with PF: 0.99
• MTBF: 100,000 hours
• Safety : cUL, TÜV, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R
• Unit Dimensions

      - 3.4" (H) x 5.9" (W) x 7.1" (D)
      - 86 mm (H) x 150 mm (W) x 180 mm (D)

• Package Dimensions

      - 4.7" (H) x 9.4" (W) x 11.4" (D)
      - 290 mm (H) x 240 mm (W) x 120 mm (D)

• Weight

      - Net: 5.5 lbs / 2.5 kg
      - Gross: 8.5 lbs / 3.9 kg



Antec\'s HCP-750 unifies raw power with advanced PSU engineering to meet the demands of high performing PCs. A full-featured, 80 PLUS® Gold certified unit, HCP-750 is capable of outputting 100 percent of its rated power on its four +12V rails to ensure CPU and graphics card compatibility. Exclusive to the High Current series, HCP-750 boasts High Current heavy-gauge 16 AWG wiring that boosts conductivity, increasing efficiency and improving power delivery. In addition, a double-layer PCB and onboard DC-to-DC converters provide substantial voltage stability. To tackle the needs of your system, pick up Antec\'s HCP-750.
