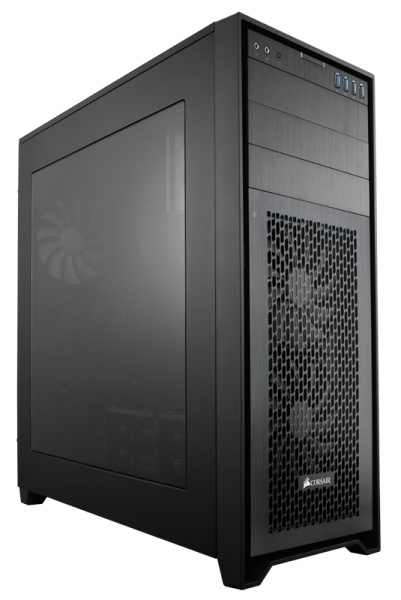

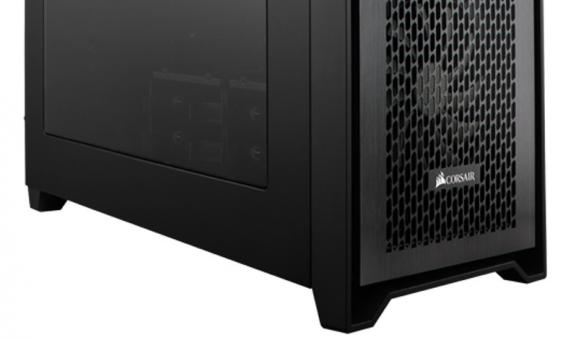

Corsair 750D kabinettet kommer i airflow-udgave

Kølere var ikke det eneste, Corsair havde med på Computex. De fremviste også en ny udgave af det her på Tweak.dk allerede testede Obsidian 750D kabinet, der udkom i 2013.

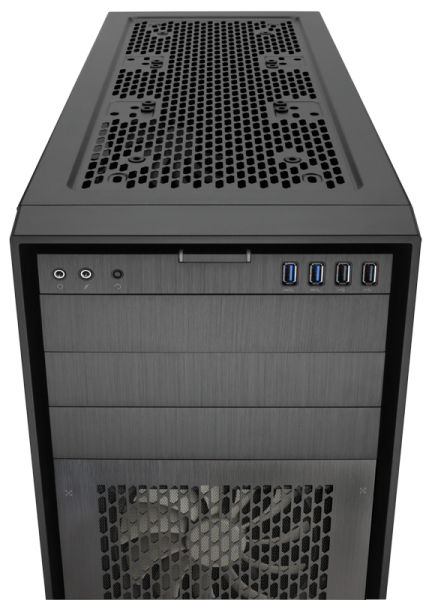

I den nye udgave har Corsair fokuseret på airflow. Det betyder, at der er kommet større og flere huller i fronten, og i toppen, fronten og i bagenden finder vi således også let aftagelige støvfiltre. Ellers lader specifikationerne, som I i øvrigt kan læse herunder, til at være nogenlunde de samme som i det oprindelige 750D kabinet. Denne airflow udgave er blot henvendt til de, der har stort, svedende system monteret i kabinettet, der kræver læssevis af airflow.



Corsair Obsidian 750D Airflow Edition er klar til bestilling fra Corsairs hjemmeside til en vejledende pris på 160 USD (ca. 1.100 DKK)



Obsidian Series 750D Airflow Edition Specifications



Expansion Room

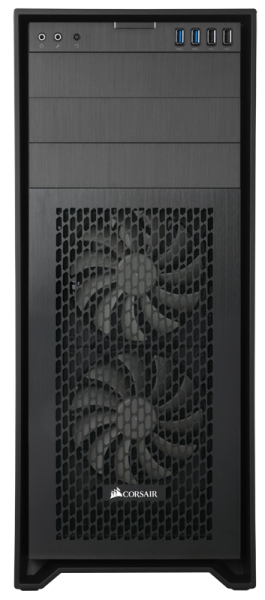

• Perforated front grille for improved cooling
• Nine expansion slots for larger motherboards and running multiple graphics cards or expansion boards simultaneously
• Six tool-free 3.5”/2.5” combo bays in two modular hard drive cages, with room for two more cages for up to 12 combo drive bays
• Four tool-free 2.5” side-mounted drive cages for SSDs, out of the airflow path
• Three tool-free 5.25” bays for expansion
• Four front mounted USB ports for easy peripheral or external storage device connection

Cooling Flexibility

• Three AF140L high-airflow 140mm fans (2 front, 1 rear) for excellent airflow and low noise levels
• Room for up to 8 fans
• Radiator compatibility:
• Top – 360mm or 280mm
• Front – 280mm or 240mm
• Bottom – 240mm
• Rear – 140mm or 120mm

Storage Layout Options

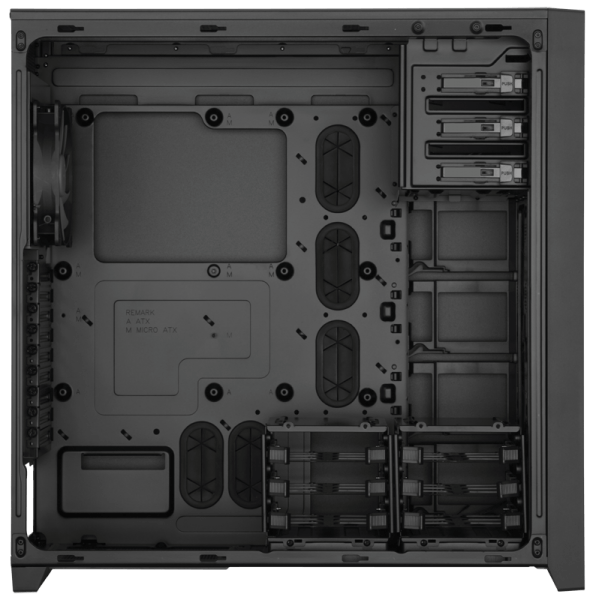

• Modular hard drive cages can be configured in four separate mounting locations.
• Side-mounted 2.5” cages allow quick, easy removal of the 3.5” drive cages for better airflow or room for radiators, while maintaining capacity for up to four 2.5” drives.

Builder-Friendly Features

• Thumbscrew side panel removal and expansion slots
• Tool-free 3.5”, 2.5”, and 5.25” drive bays
• Center-post standoff holds motherboard in place while you secure the other screws.

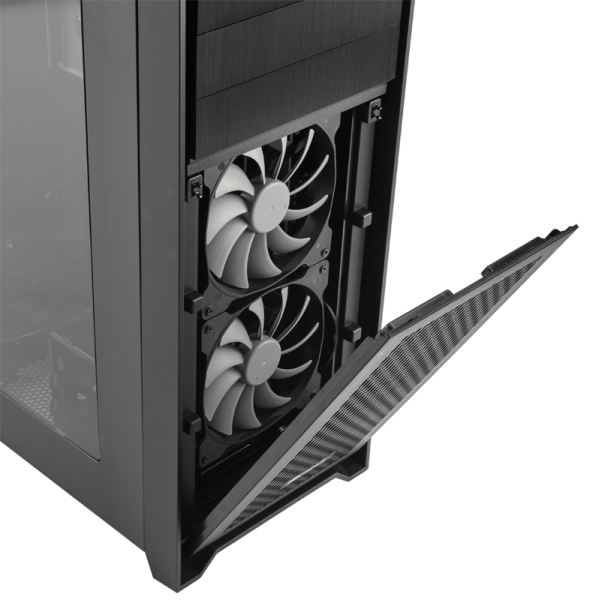

• Easily accessible (and removable) front, rear, and top dust filters.

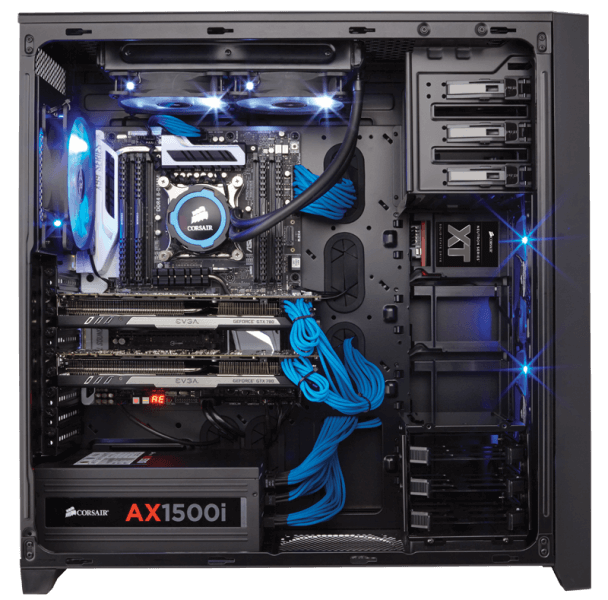

• Outstanding cable routing with rubber grommets for superior airflow and cleaner, neater builds
• Four USB ports (two USB 3.0) and headphone/mic jacks in the front panel for easy access

Dimensions and Weight

• Length x Width x Height
• 21.5 x 9.25 x 22 inches
• 546 x 235 x 560mm
• Weight
• 9.7 kg
• 21.4 lbs
