ASUS Maximus VIII Extreme Assembly

ASUS melder sig i denne omgang på banen med et bundkort, der er lidt ud over det sædvanlige, hvilket blandt andet også giver sig til kende ved et særdeles heftigt netværkskort, som tager os ind i den næste æra indenfor hastighederne. Hvad ASUS Maximus VIII Extreme Assembly ellers har at vise os, skal vi se mere på nu.



I må ikke snyde jer selv for at klikke på Asus banneret for at se en fyldestgørende oversigt.

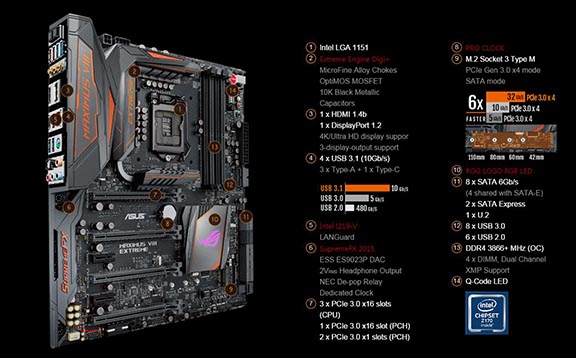

De tekniske specifikationer:

En kort oversigt over hvad du rent faktisk får med af specs.



- LGA1151 socket for 6th-gen Intel® Core™ desktop processors.
- Dual DDR4 3866 (OC) support
- Bundled gaming gear – SupremeFX Hi-Fi & 10G Express
- Best gaming performance – 5-Way Optimization with Auto-Tuning, Pro Clock, second-generation T-- Topology and Extreme Engine Digi+.
- Best gaming audio – Reinvented SupremeFX 2015 with intuitive Sonic Studio II.
- Best gaming networking – Best-in-class Intel® Gigabit Ethernet and LANGuard.
- Best gaming connectivity — 3x3 802.11ac Wi-Fi , NVMe U.2, M.2, SATA Express and USB 3.1 Type-- A and Type-C for extreme-speed transfers and total compatibility.
- Best gaming protection – Carefully-selected premium components for maximum durability.
- ROG gives you more – More gaming-focused utilities, all free!



CPU

Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list



Chipset - Z170



Hukommelse

4 x DIMM, Max. 64GB, DDR4 fra 2133MHz til 3866MHz



Grafik

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™



Multi-GPU-Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD 4-Way CrossFireX Technology



Udvidelsesporte
3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4, gray)
1 x PCIe 3.0/2.0 x16 (x4 mode, gray)
2 x PCIe 3.0/2.0 x1 (black)



Lager:

1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*1
6 x SATA 6Gb/s port(s), gray, , 4 ports from 2 x SATA Express
2 x SATA Express port
1 x U.2 port
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports*2
Supports Intel® Smart Response Technology*2
ASMedia® ASM1061 controller :
2 x SATA 6Gb/s port(s), black



LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Anti-surge LANGuard



Wireless

Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Up to 1300Mbps transfer speed

Bluetooth V4.0



Audio

ROG SupremeFX 2015 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ESS® ES9023P
- TI RC4580 2VRMS audio OP AMP(s)
Audio Feature :
- Gold-plated jacks
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SenseAmp
- Sonic Studio II
- Sonic Radar II



USB:

6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
Intel® Z170 chipset : *4
6 x USB 2.0 port(s) (6 at mid-board)
ASMedia® USB 3.1 controller :
2 x USB 3.1 port(s) (2 at back panel, red, Type-A)
Intel® USB 3.1 controller :
2 x USB 3.1 port(s) (2 at back panel, , Type-A + Type-C)
ASMedia® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)



ROG Exclusive Features:

Start Button
Reset Button
LN2 Mode
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
- OptiMOS™ MOSFET
Mem TweakIt
ROG Extreme OC kit :
- ReTry button
- Safe Boot button
- Start button
- Reset button
- Slow Mode
- LN2 Mode
- PCIe x16 Lane Switch
- Debug LED
- EZ Plug
- DRAM channel jumper
ProbeIt
KeyBot II
- One-click Overclocking
- X.M.P.
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features :
- O.C. Profile
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
iROG
Extreme Tweaker
USB BIOS Flashback
Overclocking Protection :
- COP EX (Component Overheat Protection - EX)



Special Features:

OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
ASUS Exclusive Features :
- GPU Boost
- MemOK!
- AI Suite 3
- Ai Charger+
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
- HyStream
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
RAMCache



Find den komplette liste over specifikationer via linket ROG MAXIMUS VIII EXTREME/ASSEMBLY



Står du overfor at skulle lave en heftig opgradering af din computer, anbefaler vi, at du slår vejen forbi PriceRunner.dk for at finde de bedste dagsaktuelle priser.





På næste side kigger vi på designet og ydeevnen.
